Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Lever/Handle Single operating lever/handle, Hot/Cold symbols
- Mechanical parts ø 35 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features Rapid installation system
- Spout Fixed spout
- Color Matt black
- Temperature Limitation option for maximum temperature and flow-rate
Flow attributes
- Flow-rate at 300 kPa (with flow controller) 0.1 l/s
- Pressure loss with flow (0.1 l/s) 200 kPa
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- Hot water supply max. +70°C
- Material Brass
- Projection 121 mm
- Working pressure 100 - 1000 kPa
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Sustainability
- ItemEPDA1 6,49
- ItemEPDA1A2A3 7,42
- ItemEPDA2 0,31
- ItemEPDA3 0,61
- ItemEPDA4 0,21
- ItemEPDB7 1854,00
- ItemEPDC2 0,01
- ItemEPDC3 0,02
- ItemEPDC4 0,06
- ItemEPDD -5,28
+SP0902228333(2019).webp)

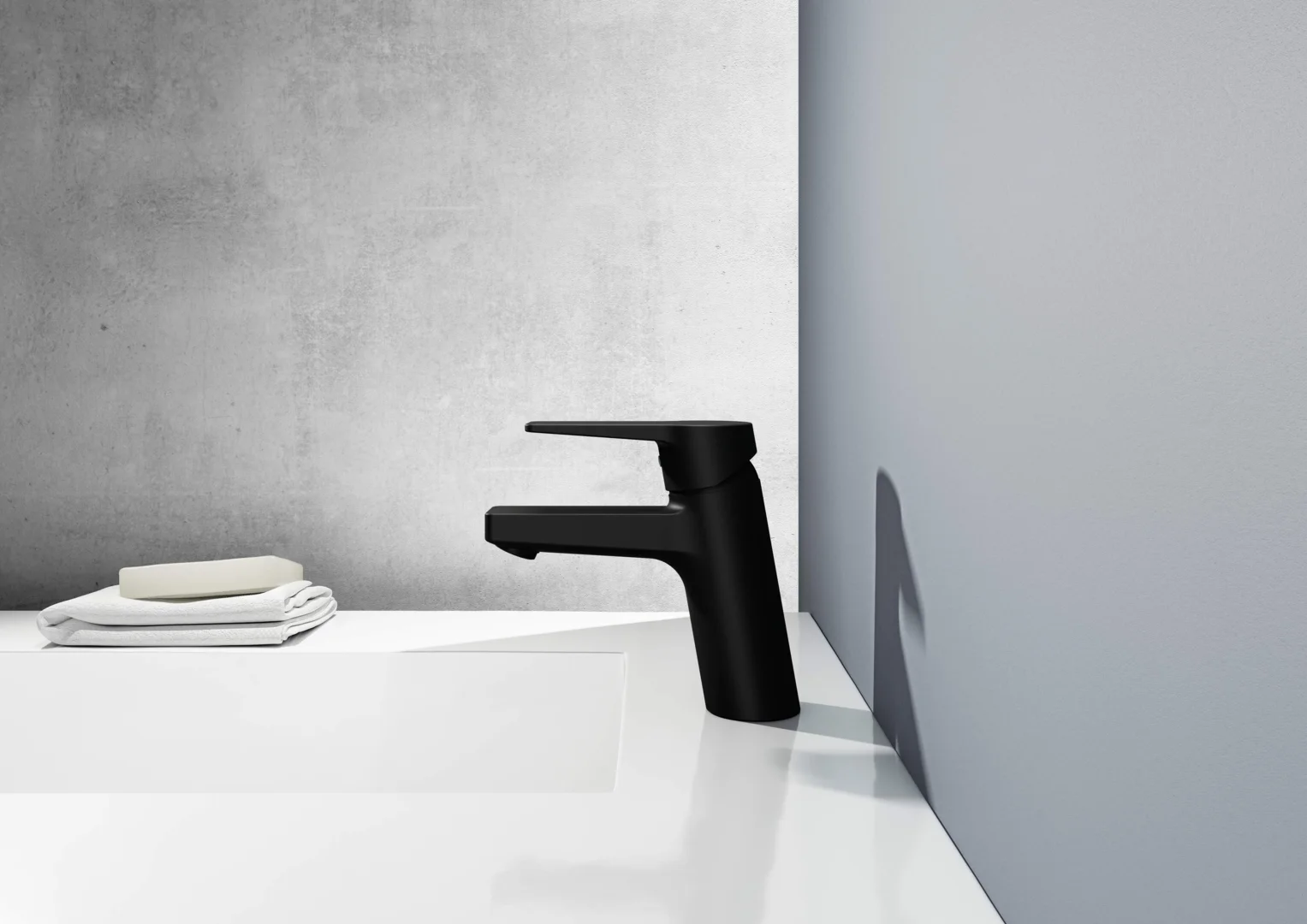

SP3810F-33 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Temperature adjustment limiter
Discontinued
|
|
|
| 02 |
|
Tightening nut, M40x1 |
|
|
| 03 |
|
Cartridge, 3.5 Classic |
|
Download |
| 04 |
|
Fixing screw, M8x1, L=140 |
|
|
| 05 |
|
Bottom seal |
|
|
| 06 |
|
Fixing set |
|
|
