Features
- Aerator Standard aerator
- Connection Flexible inlet pipes
- Extensions Chain holder without chain
- Lever/Handle Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
- Mechanical parts ø 40 mm ceramic cartridge for flow and temperature control
- Mounting holes 1 hole
- Advanced features 3S-installation system for safe and simple mounting
- Spout Fixed spout
- Color Matt black
- Temperature Limitation option for maximum temperature and flow-rate
Flow attributes
- Eco-flow at 300 kPa 0.11 l/s
- Flow-rate at 300 kPa 0.18 l/s
- Pressure loss with flow (0.1 l/s) 110 kPa
Technical properties
- Backflow prevention (EN1717) AA
- Connection size G3/8
- DN-size (nominal dimension) DN15
- Hot water supply max. +70°C
- Material Brass
- Projection 107 mm
- Working pressure 50 - 1000 kPa
Regulations
- EN standard EN 817
- Noise class I (ISO 3822)
Sustainability
- ItemEPDA1 6,23
- ItemEPDA1A2A3 7,13
- ItemEPDA2 0,30
- ItemEPDA3 0,59
- ItemEPDA4 0,20
- ItemEPDB7 2039,40
- ItemEPDC2 0,01
- ItemEPDC3 0,01
- ItemEPDC4 0,06
- ItemEPDD -5,07
.webp)

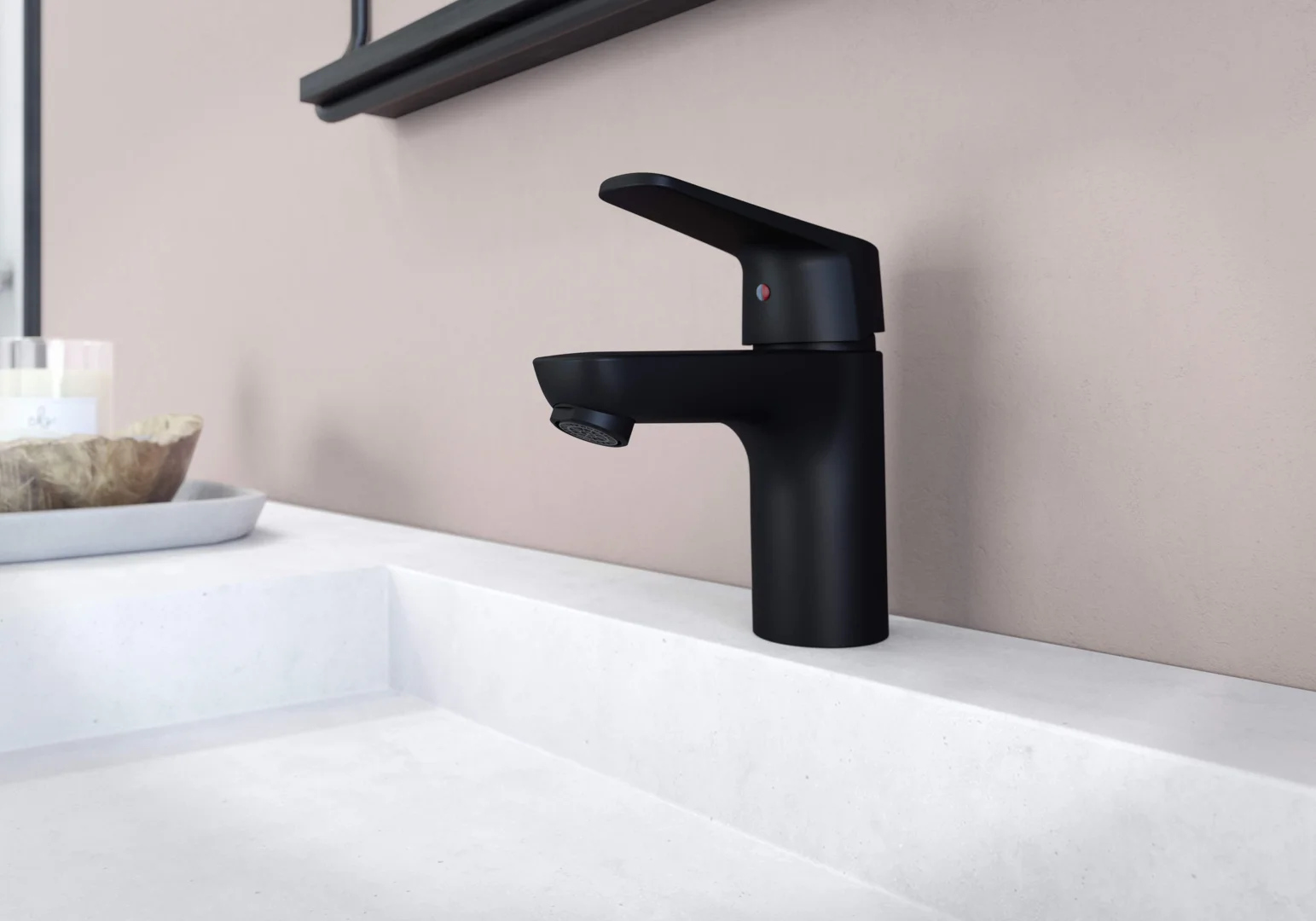

SP1812FG-33 Washbasin faucet
Ask pricing from your local retailers.
| Spare parts | Code | Spare part guide | ||
| 01 |
|
Lever (Matt black) |
|
|
| 02 |
|
Limiter |
|
|
| 04 |
|
Tightening nut, M42x1.5, SW 38 |
|
|
| 05 |
|
Cartridge |
|
Download |
| 06 |
|
Fixing screw, M8x1, L=130 |
|
|
| 07 |
|
Fixing set |
|
Download |
| 09 |
|
Bottom seal |
|
|
| 10 |
|
Nipple |
|
Download |
| N.I. |
|
Holder |
|
|
| N.I. |
|
Plug |
|
|
